Term and Conditions:
- Pre-order can only be done for the selected Polygon Helios series in the form.
- The pre-order can be cancelled at the sole discretion of Rodalink.
- In order to cancel the pre-order, customer needs to submit a written cancellation request to [email protected]. Any refunds, if applicable, on cancellation will be processed as per the refund policy.
Build Specification - Helios A Series:
| Kit | Helios A9X | Helios A8X |
Helios A8 |

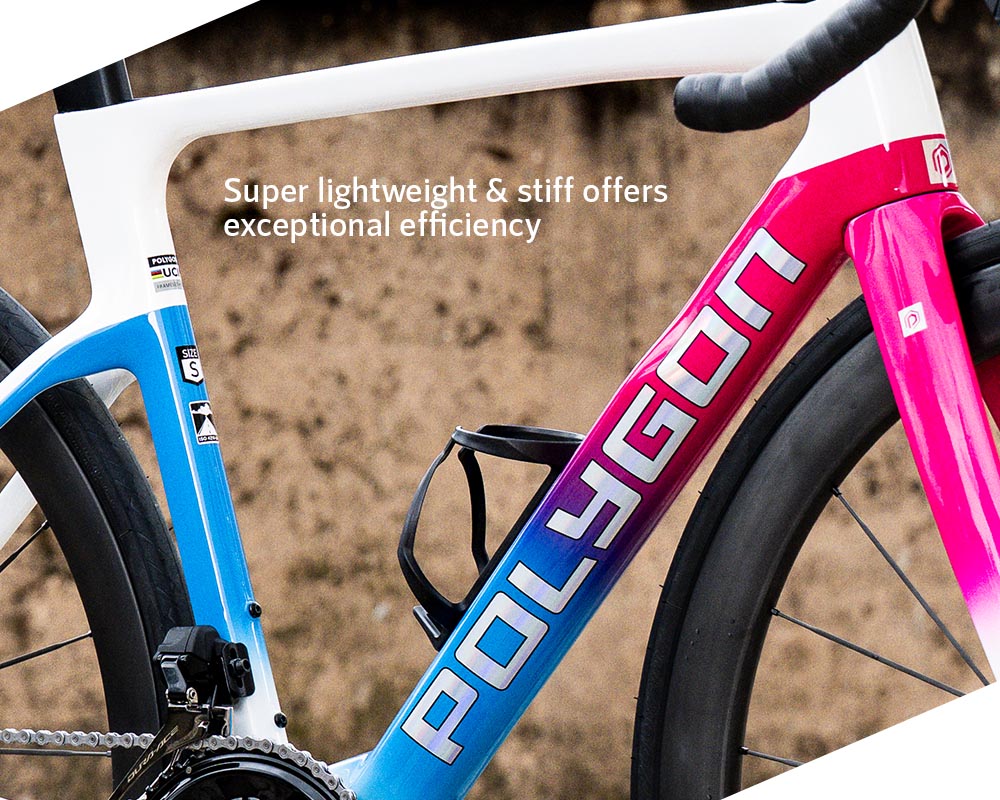

| Frame | ACX Lightweight Carbon Frame, Internal Route (UCI Approved) | ACX Lightweight Carbon Frame, Internal Route (UCI Approved) |
ACXLightweight Carbon Frame, Internal Route |
| Fork | ACX Lightweight Carbon Fork | ACX Lightweight Carbon Fork |
ACX Lightweight Carbon Fork |
| Groupset |
Shimano Dura-Ace Di2 2x12-Speed or Shimano Dura-Ace Di2 2x12-Speed with Power Meter |
Shimano Ultegra Di2 2x12-Speed |
Shimano Ultegra 2x11-Speed |
| Brake set |
Shimano Dura Ace BR-R9270 Hydraulic Disc Brake |
Shimano Ultegra BR-R8170 Hydraulic Disc Brake |
Shimano Ultegra BR-R8070 Hydraulic Disc Brake |
| Wheels |
Shimano Dura-Ace WH-R9270-C60-HR-TL (60mm) Tubeless Entity WR500 Carbon Wheelset Tubeless Ready |
Entity WR500 Carbon Wheelset Tubeless Ready |
Entity WR500 Carbon Wheelset Tubeless Ready |
| Tires | Schwalbe One Tires 700x28C | Schwalbe One Tires, 700x28C |
Schwalbe One Tires, 700x28C |
| Handlebar | Vision Metron 5D ACR Integrated 400mm (XS, S) 420mm (M, L) 420mm (XL) | Vision Metron 5D ACR Integrated 400mm (XS, S) 420mm (M, L) 420mm (XL) |
FSA Energy Compact Dropbar 400mm (XS, S) / 420mm (M, L) / 440mm (XL) |
Geometry & Size:
A brief explanation of geometry is placed here. The geometry image below will stay / freeze.
| Size (mm) | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Height (cm) | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| Seat Tube Length (A) |
475 | 500 | 520 | 545 | 570 |
| Seat Tube Angle (B) |
74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Effective Seat Tube Angle (C) |
74.7 | 74.3 | 74 | 73.7 | 73.3 |
| Head Tube Length (D) |
115 | 130 | 145 | 160 | 175 |
| Head Tube Angle (E) |
71.8 | 72 | 72.3 | 72.3 | 72.8 |
| Effective Top Tube (F) |
517.31 | 530.42 | 543.04 | 555.14 | 569.25 |
| Bb Height (G) | 271 | 271 | 271 | 271 | 271 |
| Bb Offset (H) | 73 | 73 | 73 | 73 | 73 |
| Chainstay Length (I) |
415 | 415 | 415 | 415 | 415 |
| Wheelbase (J) | 975.82 | 983.9 | 991.1 | 1000.62 | 1005.8 |
| Frame Reach (K) | 375 | 380 | 385 | 390 | 395 |
| Frame Stack (L) | 520.21 | 535.2 | 550.4 | 564.7 | 580.8 |
| Standover Height (M) |
739.4 | 763.21 | 780.8 | 802.52 | 824.28 |
