Polygon Collosus DH Pre-Order

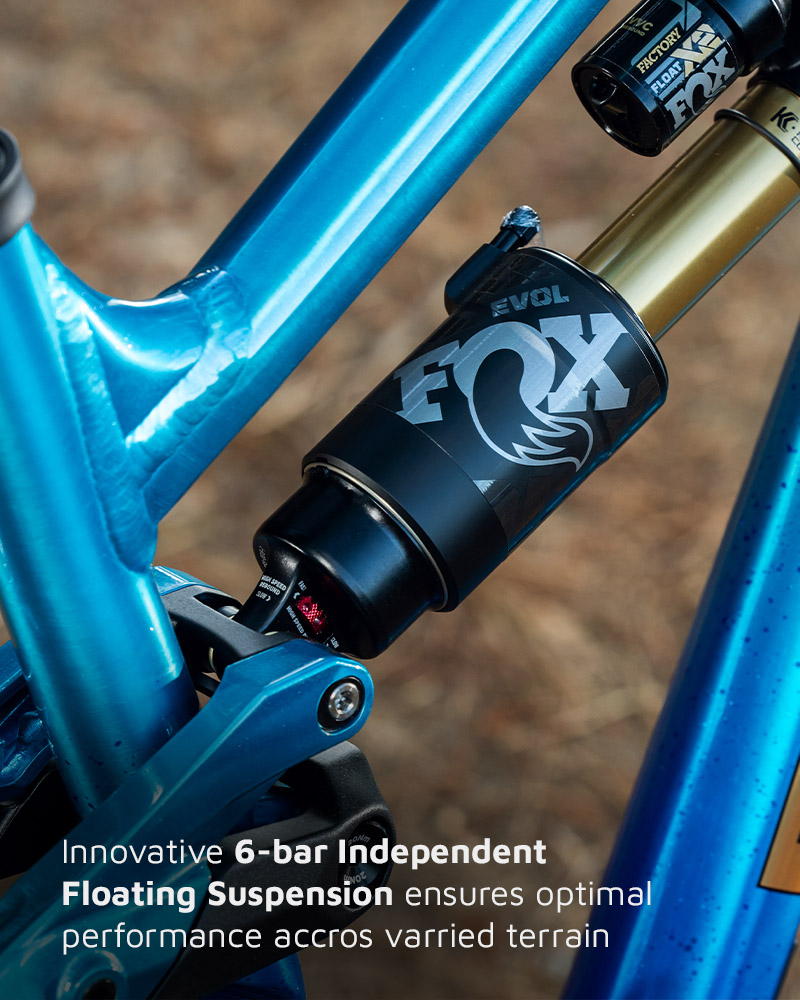

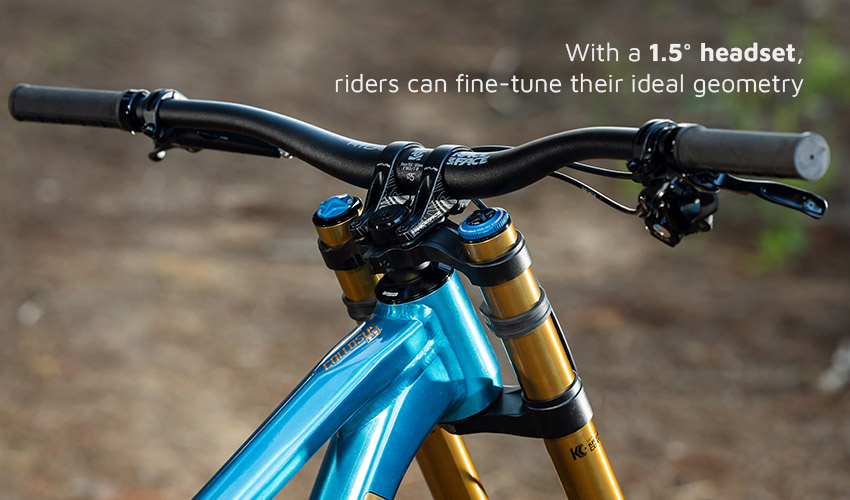

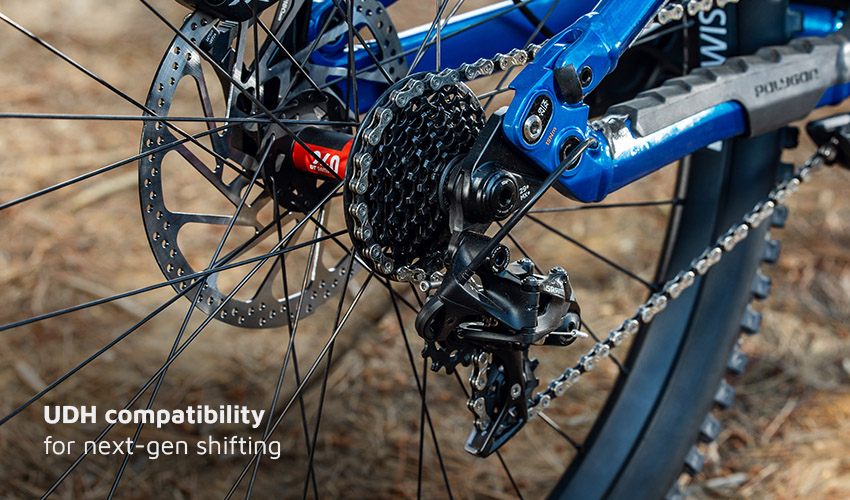

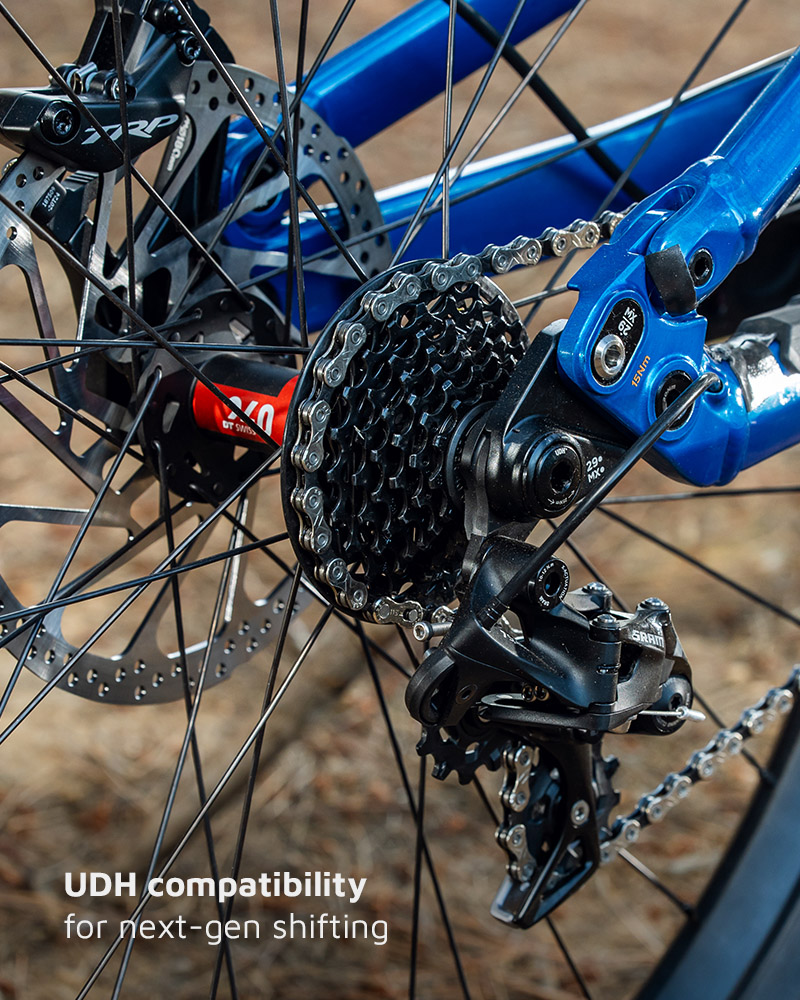

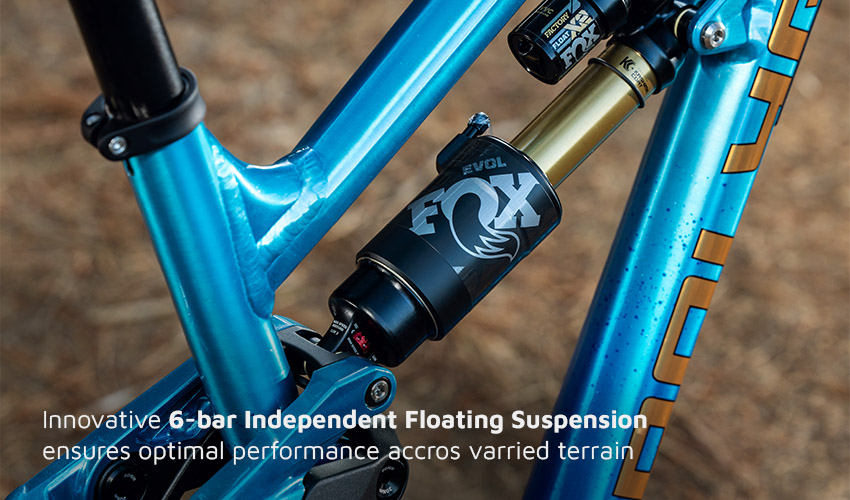

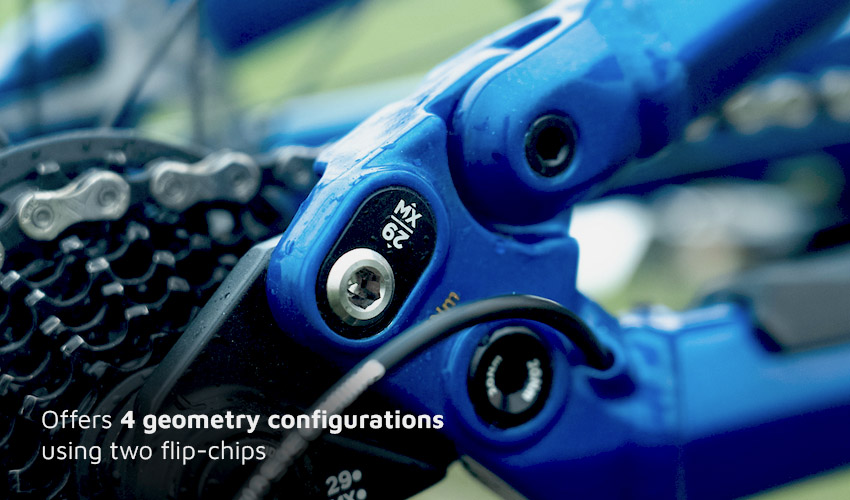

Why Polygon Collosus DH?
Shop now at Rodalink Singapore and enjoy the benefits:
Take a few simple step and get your Polygon Collosus DH
Get Started - Fill Out Your Details Here!
Hear what others say about Polygon Collosus DH
Build Specification - Polygon Collosus DH:
| Collosus DH9 | Collosus DH7 | |
|---|---|---|
| Frame | ALX DOWNHILL 200mm TRAVEL | ALX DOWNHILL 200mm TRAVEL |
| Fork | ROCKSHOX BOXXER BASE, AIR SPRING, TRAVEL- 200mm, CHARGER 3, COMPRESSION, REBOUND STEERER: STRAIGHT 1-⅛ HUB SPACING: 20x110mm THRU AXLE |
FOX FACTORY 40, KASHIMA COAT, AIR SPRING, TRAVEL: 203mm, GRIP 2, HSC, LSC, HSR, LSR STEERER: STRAIGHT 1-⅛ HUB SPACING: 20x110mm THRU AXLE |
| Rear Suspension | ROCKSHOX VIVID BASE E2E: METRIC 250x75mm HARDWEAR: M8x30mm FOR BOTH SIDES |
FOX FACTORY FLOAT X2 - AIR SPRING, HSC, LSC, HSR, LSR E2E: METRIC 250x75mm HARDWEAR: M8x30mm FOR BOTH SIDES |
| Drivetrain | SRAM X01 DH, 1X7-SPEED | SRAM GX DH, 1X7-SPEED |
| Tires | SCHWALBE TACKY CHAN SUPER GRAVITY, ADDIX SOFT FRONT: 29"x2.4" (622-62) REAR: 27.5"x2.4" (584-62) |
SCHWALBE TACKY CHAN SUPER GRAVITY, ADDIX SOFT FRONT: 29"x2.4" (622-62) REAR: 27.5"x2.4" (584-62) |

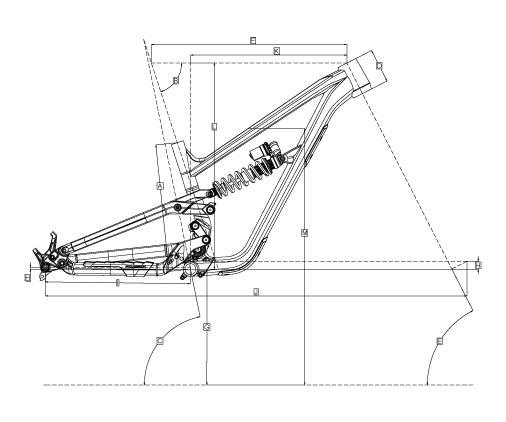

Geometry & Size:
A concise overview of geometry is provided below
GEOMETRY MIX
| Frame Size (LO-HI Settings) | ||||
|---|---|---|---|---|
| S | M | L | XL | |
| A Seat Tube Length | 390 | 390 | 390 | 390 |
| B Seat Tube Angle | 71.6° / 72° | 71.6° / 72° | 71.6° / 72° | 71.6° / 72° |
| C Effective Seat Tube Angle | 78.1° / 78.5° | 78.1° / 78.5° | 78.1° / 78.5° | 78.1° / 78.5° |
| D Head Tube Length | 105 | 105 | 105 | 105 |
| E Head Tube Angle | 62.6° / 63° | 62.6° / 63° | 62.6° / 63° | 62.6° / 63° |
| F Effective Top Tube | 558 / 557 | 581 / 580 | 601 / 600 | 623 / 622 |
| G BB Height | 350 / 356 | 350 / 356 | 350 / 356 | 350 / 356 |
| H BB Drop | F:30 R: 11 / F:24 R: 6 | F:30 R: 11 / F:24 R: 6 | F:30 R: 11 / F:24 R: 6 | F:30 R: 11 / F:24 R: 6 |
| I Chainstay Length | 446 / 445 | 446 / 445 | 446 / 445 | 446 / 445 |
| J Wheelbase | 1251 / 1250 | 1274 / 1273 | 1294 / 1293 | 1316 / 1315 |
| K Frame Reach | 433 / 437 | 456 / 460 | 476 / 480 | 498 / 502 |
| L Frame Stack | 635 / 632 | 635 / 632 | 635 / 632 | 635 / 632 |
| M Standover Height | 813 / 817 | 813 / 817 | 813 / 817 | 813 / 817 |
Term and Conditions:
- Pre-order can only be done for the selected Polygon Collosus DH series in the form.
- The pre-order can be cancelled at the sole discretion of Rodalink.
- In order to cancel the pre-order, customer needs to submit a written cancellation request to cs.sg@rodalink.com. Any refunds, if applicable, on cancellation will be processed as per the refund policy.
