Bicycle Crankset 101: Your Ultimate Guide
The crankset, sometimes called a chainset, is a super important part of your bike. It's like the engine that powers your bike when you pedal.
In this easy guide, we'll explain all about cranksets. We'll talk about the different kinds of cranksets, the size of the chainrings, how long the cranks are, and whether they work with your bike. So, get ready to learn all about this essential bike part!
What Is Bicycle Crankset?
Let's start with the basics. The bicycle crankset is like the powerhouse of your bike. It's that assembly of parts where your pedals are connected, and it plays a pivotal role in transforming your leg power into forward motion. Essentially, it's what makes your bike move.
The crankset has two arms with your pedals attached, and it can have one to three chainrings that the chain goes around. In modern designs, there's a part in the middle called an axle or spindle that connects the two sides. In older cranksets, the axle is part of the bottom bracket, which is what connects the cranks to the bike's frame.
When you combine the crankset with the gears at the back of your bike (controlled by a rear derailleur and a bunch of sprockets on the rear wheel), you get different gears to help you ride comfortably on different types of terrain. It might seem simple, but cranksets can be pretty tricky because there are so many choices, standards, and things that must match each other.
The Sizes: 1x, Double, and Triple
Cranksets on bikes can have one, two, or three chainrings. Your crankset choice depends on how many gears you want for your bike. There are mainly three types:
- Single or 1x: This one has just one chainring. It's commonly used in mountain biking. Even though it has fewer parts, it can still cover a wide range of speeds because it works with a special kind of rear gear called a cassette. This is good for off-road riding because it's less likely to drop the chain and collect mud.
- Double: You'll often see this on road bikes. The double crankset offers a lot of different gears with small steps between them. This helps riders keep a steady pedaling speed. They come in various sizes depending on the type of road riding and how strong the rider is.
- Triple: This is an older style of crankset that you might find on touring, vintage, or less expensive bikes. It has three chainrings, so it can cover a wide range of speeds. But because of the extra ring, it's heavier. Beginners might find the smallest ring helpful for tough uphill climbs.
So, whether you want simplicity, a wide range of gears, or extra help on hills, there's a crankset out there for you.

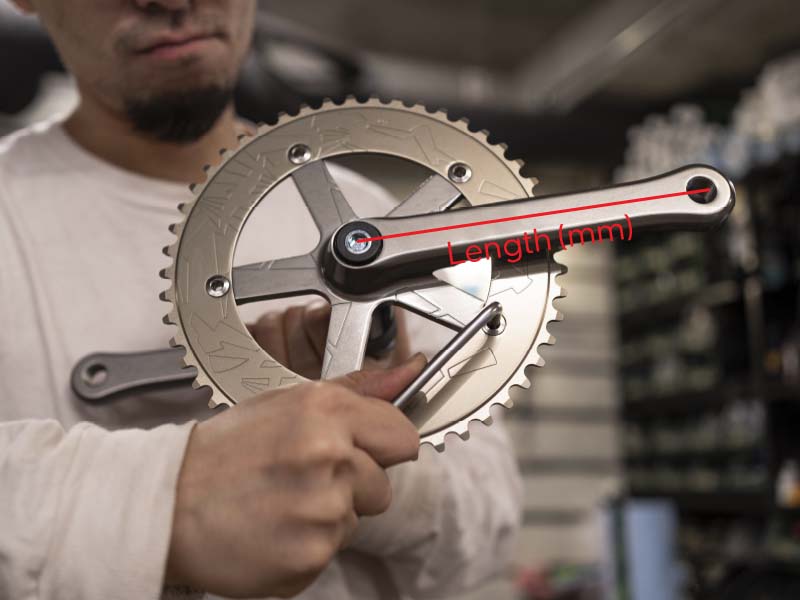

Crank Length
There are different lengths of crank arms available for your bike. The shortest ones are usually around 165mm, and they go up in small 2.5mm steps to 175mm. Some crank arms can be even longer, but that's not very common.
On medium-sized road bikes, you'll often find crank arms that are 172.5mm long. Mountain bikes usually have either 170mm or 175mm crank arms. Longer crank arms give you more power when pedaling, which can be handy on bigger bikes. However, be cautious about putting longer crank arms on a bike that didn't come with them because it might reduce the space between your pedals and the ground, especially when you're going fast around corners or riding off-road.
Shorter crank arms, on the other hand, can help you pedal faster. Triathletes often favor them. In reality, the difference between long and short crank arms is just a few millimeters. Most riders won't really notice much of a change in their regular riding when they switch from one size to another.
So, How To Know What Crank You Need?
When you're thinking about upgrading or changing the parts of your bike called crank arms or cranksets, one important thing to consider is how long these parts are. Most crank arms used for road and mountain bikes are between 170 and 175 millimeters long. But if your legs are shorter or longer than average, you might find it more comfortable to use crank arms that match your leg length better.
There are crank arms available in lengths from 160mm to 180mm, and these can suit different leg lengths. It's a good idea to look into what crank arm length is recommended for the length of your legs. It's also worth mentioning that some mountain bike riders choose shorter crank arms, especially in disciplines like downhill racing, to have more space between the ground and their pedals.

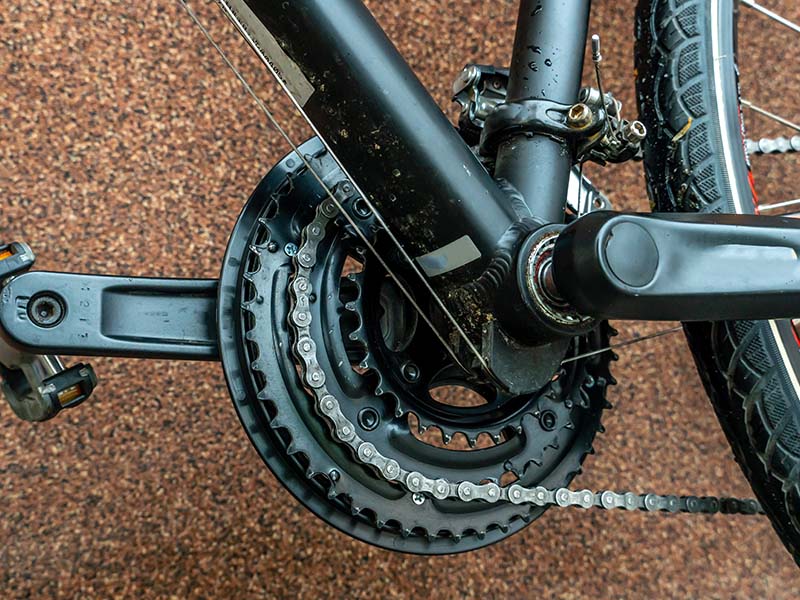

Crankset Compatibility
You've probably heard that not all bike parts are compatible with each other. The same holds true for cranksets. Here's a quick rundown:
- Bottom Bracket: This is the part that connects your crankset to your bike frame. There are various types, such as threaded, press-fit, and more. It's crucial to match your crankset with a compatible bottom bracket.
- Front Derailleur: If you have a multi-speed bike, your front derailleur needs to work with your crankset. Pay attention to the number of chainrings and the size of the chainrings to ensure smooth shifting.
- Chain: The chain's width should match the spacing between your chainrings. For instance, an 11-speed chain won't work with a single-speed crankset.
- Frame Compatibility: Some frames have specific requirements for crankset compatibility, so always check your bike's specs.
Conclusion
There you have it - Bicycle Crankset 101! Now that you're armed with knowledge about what a crankset is, its sizes, and compatibility, you're well on your way to optimizing your bike for your riding style.
